Does Oil contamination affect you?
Over 95% of hydraulic failures are the result of dirty Oil. Oil does not wear out...... it becomes Contaminated. The result is Systems Malfunction and Catastrophic Degradation
Hidden Cost
Profitability - Productivity - Efficiency - Environmental impact - Sustainability
Solution
Electrostatic Oil Purifier (EOP) - Mini Filter (MF) - High Vacuum Dehydrator (HVD)
Benefits
Higher Profitability and Sustainability - Low Environmental impact - Lifelong Oil savings - Improved Productivity - Eliminate Oil replacement
OUR SOLUTIONS EFFECTIVELY REMOVE 99.9% OF MOISTURE, OXIDATION PRODUCTS, VARNISH, ULTRAFINE PARTICLES AND OTHER CONTAMINANTS FROM OIL.
Benefits

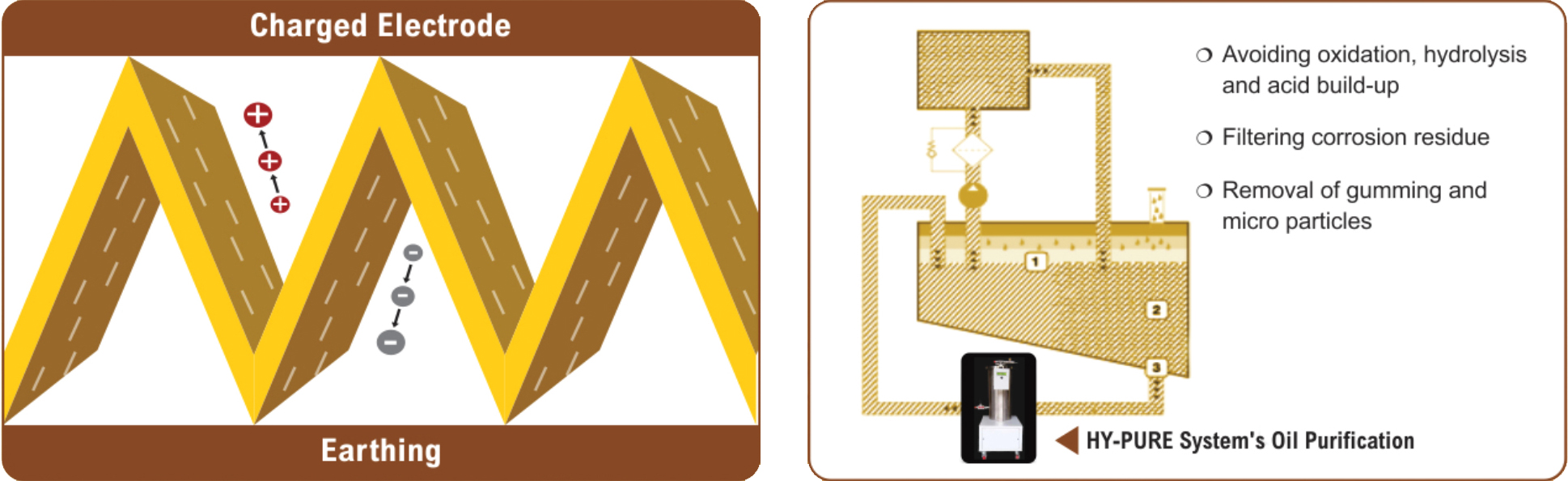

A multipass Oil purification system based on electrostatic principles
High voltage (20 Kv) is applied across the Oil via electrodes
Contaminants become charged and adhere to collectors.
Maintains Oil at ISO 4406 / NAS 1638 standards
We have developed a SMPS based High Frequency Modulation using MOSFET technology to generate 18 to 20 Kv at 80000 Hz with a Fold Back System. (Proprietary technology) This technology can minimize water contamination interference upto 1000 ppm.

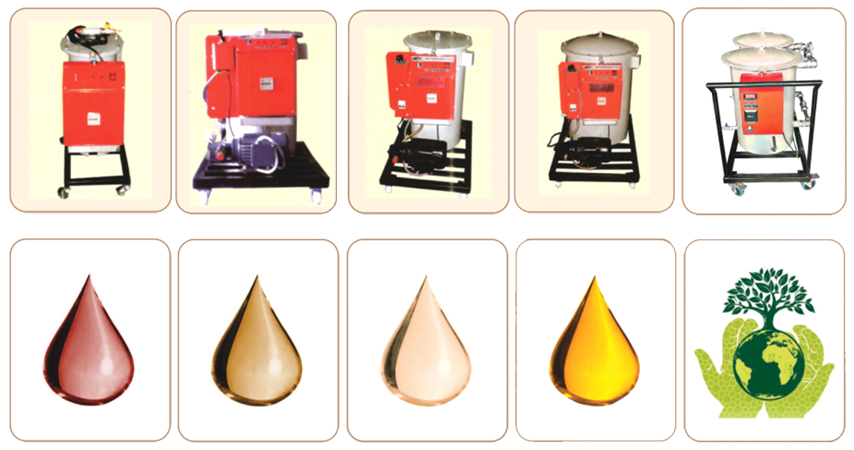

Electrostatic Oil Purifier
| CAPACITY (Ltr.) | DIMENSION (mm) | WEIGHT (KG) | PUMP FLOW RATE (LPM @ 1440 RPM) |
|---|---|---|---|
| 10 | 400 x 250 x 920 | 40 | 2-5 |
| 25 | 400 x 400 x 775 | 60 | 5-10 |
| 50 | 400 x 400 x 1050 | 80 | 10-15 |
| 100 | 600 x 600 x 1150 | 120 | 15-20 |
| 200 | 1250 x 600 x 1150 | 185 | 30-40 |
Power
230 v. 50 Hz. AC. 1 Phase
415 v. 50 Hz. AC. 3 Phase
110 v.60 Hz. AC. 1 Phase (U.S. Standard)
12 V./24 V DC
Inlet Oil Conditions & Limitations
Temperature < 100 C
Viscosity < 320 CST.
Water Content < 1000 ppm

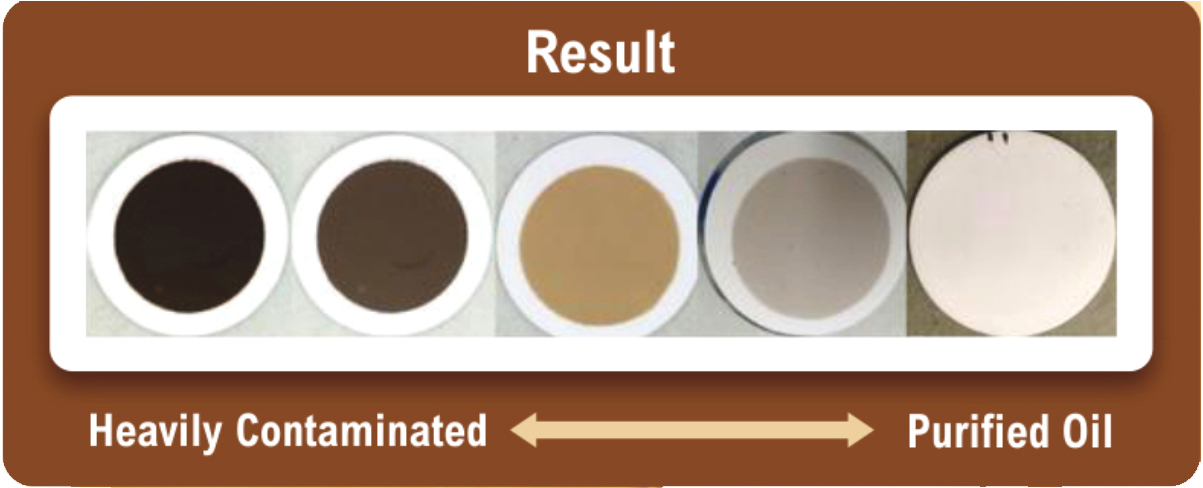

Oil Contamination Patch Test Kit
This Kit enables the determination of Oil cleanliness level before & after its filtration. The contamination level can be clearly judged by seeing the color of patch, by passing the Oil through a membrane of 'sub-micronic pores'.
Our Competitive Advantage
This Kit enables the determination of Oil cleanliness level before & after its filtration. The contamination level can be clearly judged by seeing the color of patch, by passing the Oil through a membrane of 'sub-micronic pores'.

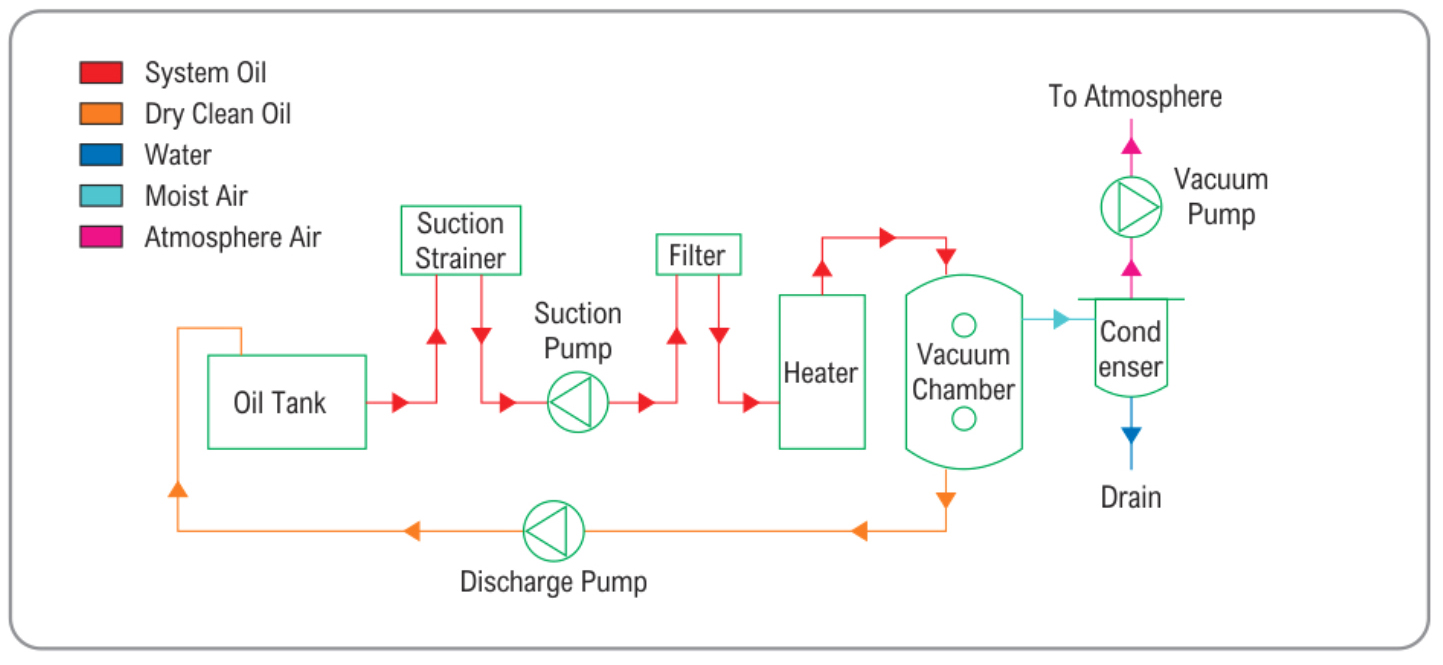

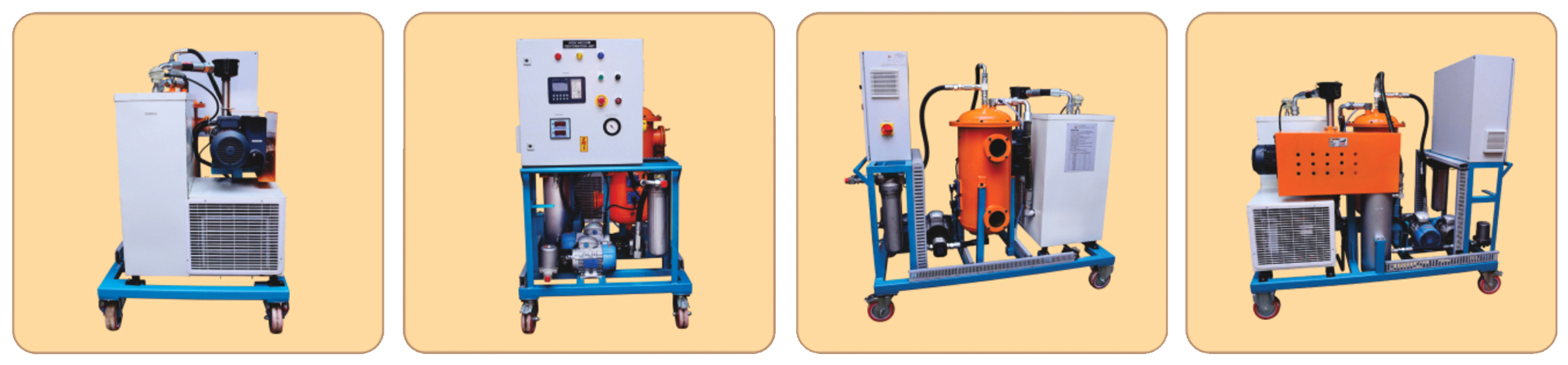

High Vacuum Dehydrator
Technical Data
Inlet connection : ½ BSP
Outlet connection : 3/4" BSP
Circulation flow rate : 15 to 20 LPM (50 Hz)
Heater power : 6 KW
Filter type : Suction Strainer
Viscosity : 10...320 CST
Dewatering rate : 1 Ltr / Hr
Protection class : IP 65
Ambient temperature : 0° C to +50° C
Fluid temperature : 45° C (Depending on altitude of site)
Operating Vacuum : Max 760 mmhg (Depending on altitude of site)
Supply Voltage : 415/440 V 50 Hz 3 Phase 16 A
Dimensions : L 1500 x W 900 x H 1500 mm
Weight : 300 kgs approx
