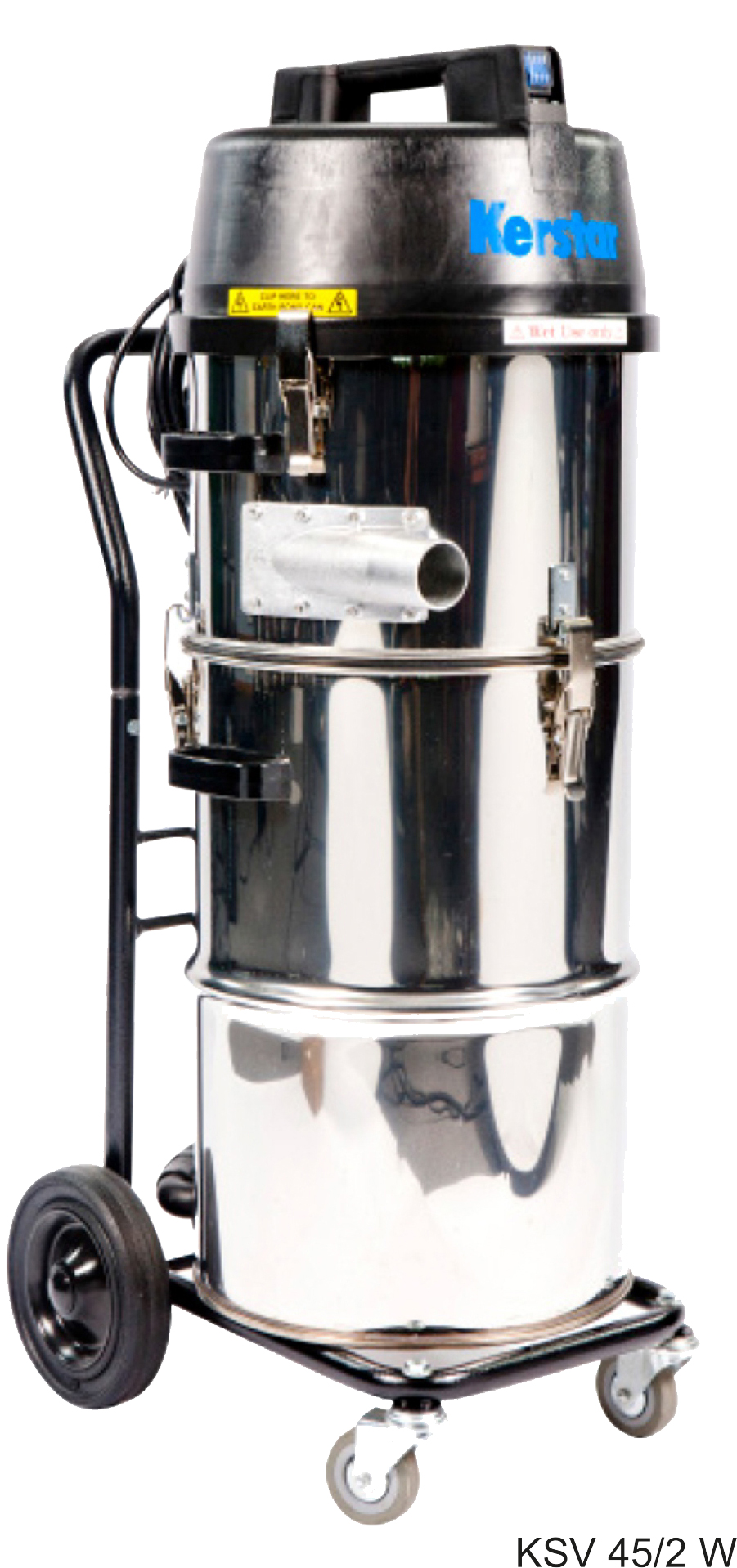

KSV 45/2 W - Wet & Dry and Swarf Vacuum Cleaners

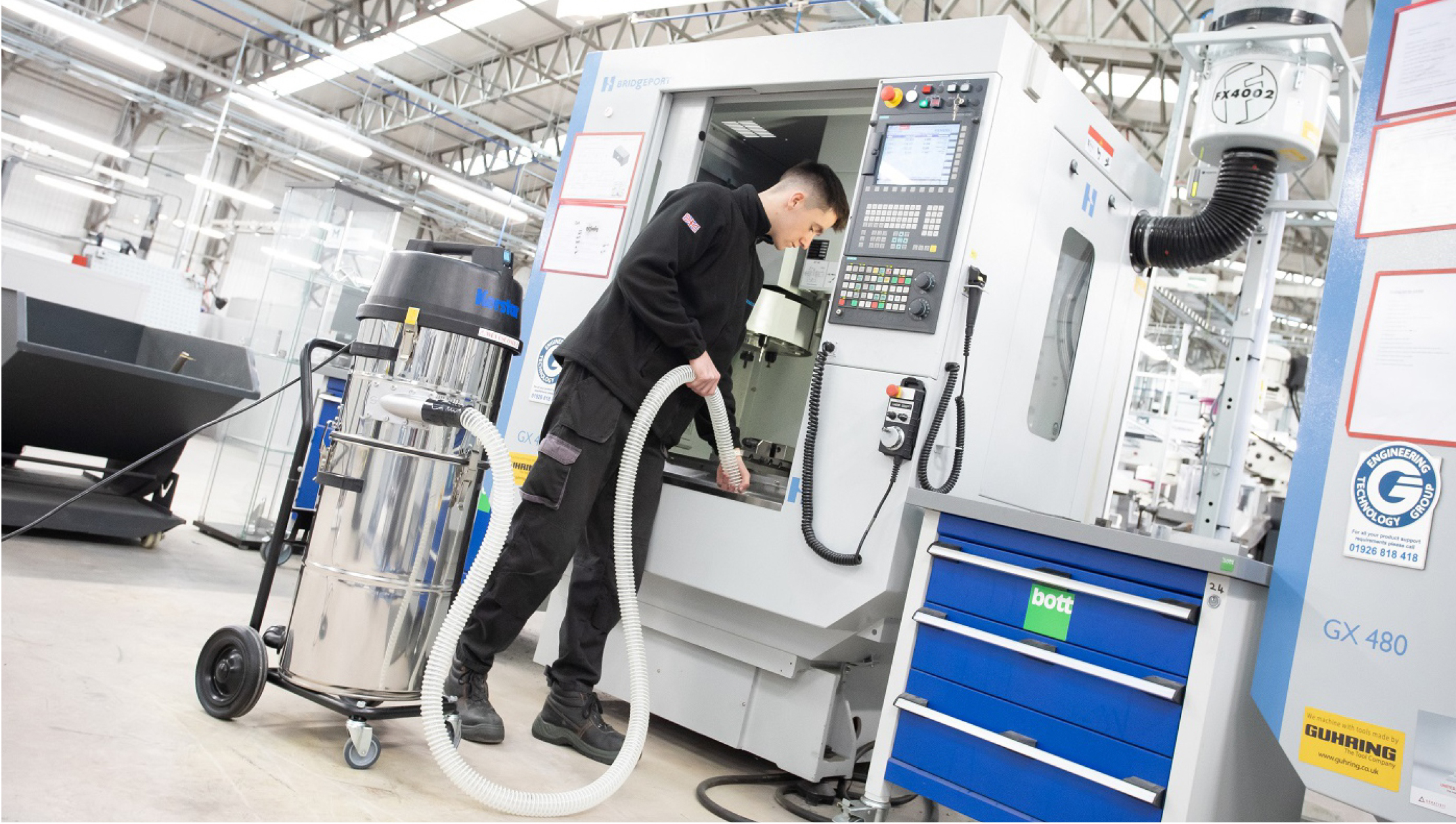

The KSV 45/2 W is a portable industrial unit designed to pick up engineering coolant (suds) and metal chippings (excluding spirals).

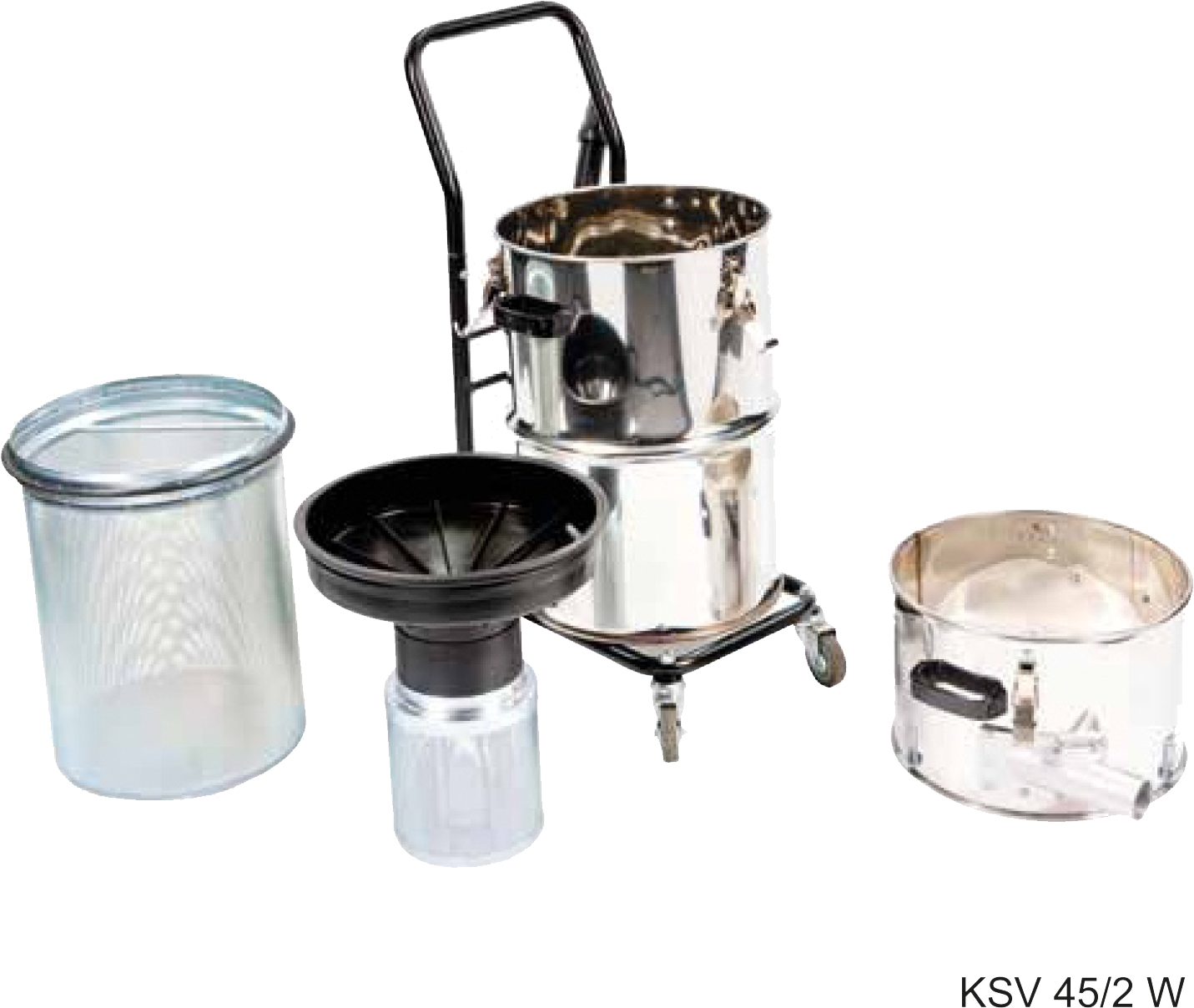

The motor unit is protected by a ball float system to cut off the suction - preventing over filling of the canister with liquid. The float cage is surrounded with a perforated steel filter to prevent swarf being sucked into the vacuum motors.
A Perforated steel basket that holds the metal chippings/swarf sits inside the canister. A lifting handle makes it easy to remove for emptying, whilst a drain hose and stopper enable all liquid to easily be drained from the carister.
Features
Supplied with either a 38mm or 51mm hose and tool kit comprising of:
38mm x 3m heavy duty pc yuretheme hese
38 x 540mm stainless steel crevice tool
38 x 305mm stainless steel g. perscraper tool
51mm x 3m heavy ducy polyurethane hose
51 x 600mm stainless steel crevice tool
51 x 300mm stainless sel y. perscraper tool.
kerstar swarf vac - KSV
Capacity of can/basket in lices - 40
No.of motors in mote-head-2
Ficted with wet cut off device & swerf filter W
Supply voltage 230 V
Also available in 110).
Technical Specification
MOTOR : 2 x 1,000 loans cooling (2,000 Max 1,600 W Mean)
POWER : 230V 50/110V 50/60Hz
PERFORMANCE (230 & 110V) : Max. Vaicum - 2,200mm
Max. Airflow - 295 m3/Hr
CAPACITY : Mex. Solids only capacity-32L
Max. Liquids only capacity-40L
DIMENSIONS (H X W X D) : 1120 x 400 x 520mm
WEIGHT : Machine only (no hose or tools) - 30KG
