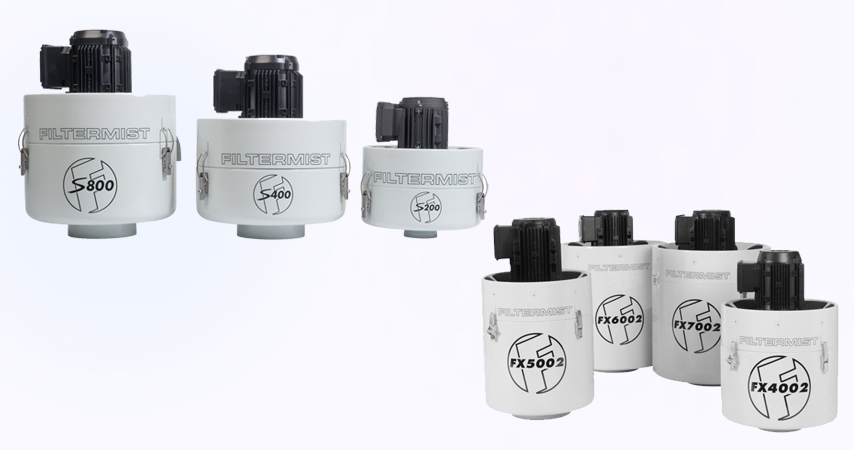

S Series / FX Series (5 Years Warranty)
Embed a little help from our friends from time to time. Although we offer the one-stop convenience of annery integrated range of legal, financial services under one roof, there are occasions when our clients areaneed specia- list advice beyond the scope of our own expertise. That’s why we’ve developed close working relationships with a number of strategic partner.

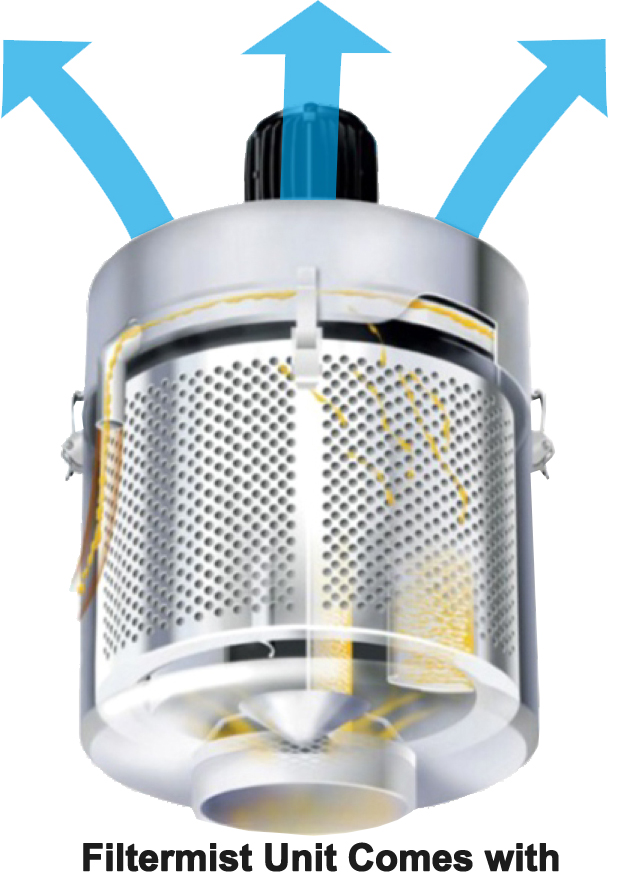

How Filtermist Units Work
Oil mist Removed at Source
Oil mist is removed from the air by centrifugal impaction
Clean oil is returned to machine
Clean air is returned to workplace
Smoke and fume can be removed and efficiency increased with the addition of a clip-on afterfilter

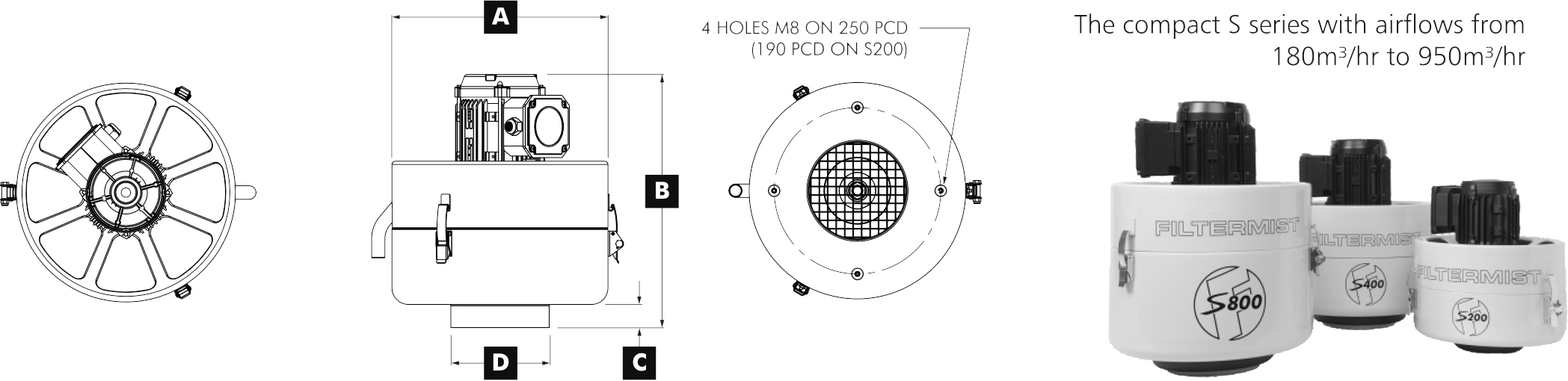

S SERIES
| Model | Airflow M3/hr | Motor1 | A (MM) | B (MM) | C (MM) | D (MM) | Weight (KG) | Noise 2dBA | |
|---|---|---|---|---|---|---|---|---|---|
| S 200 | 180 @ 50Hz 215 @ 60Hz |
0.18kw 50 Hz 200v, 220v, 380v, 400v, 415v |
0.18kw 60 Hz 220v, 230v, 240v, 440v, 460v, 480v |
260 | 302 | 30 | 73 | 9 | 62 |
| S 400 | 425 @ 50Hz 500 @ 60Hz |
0.55kw 50 Hz 200v, 220v, 380v, 400v, 415v |
0.55kw 60 Hz 220v, 230v, 240v 440v, 460v, 480v |
325 | 381 | 35 | 148 | 14 | 65 |
| S 800 | 800 @ 50Hz 950 @ 60Hz |
0.55kw 50 Hz 200v, 220v, 380v, 400v, 415v |
0.55kw 60 Hz 220v, 230v, 240v 440v, 460v, 480v |
325 | 435 | 35 | 148 | 15 | 67 |

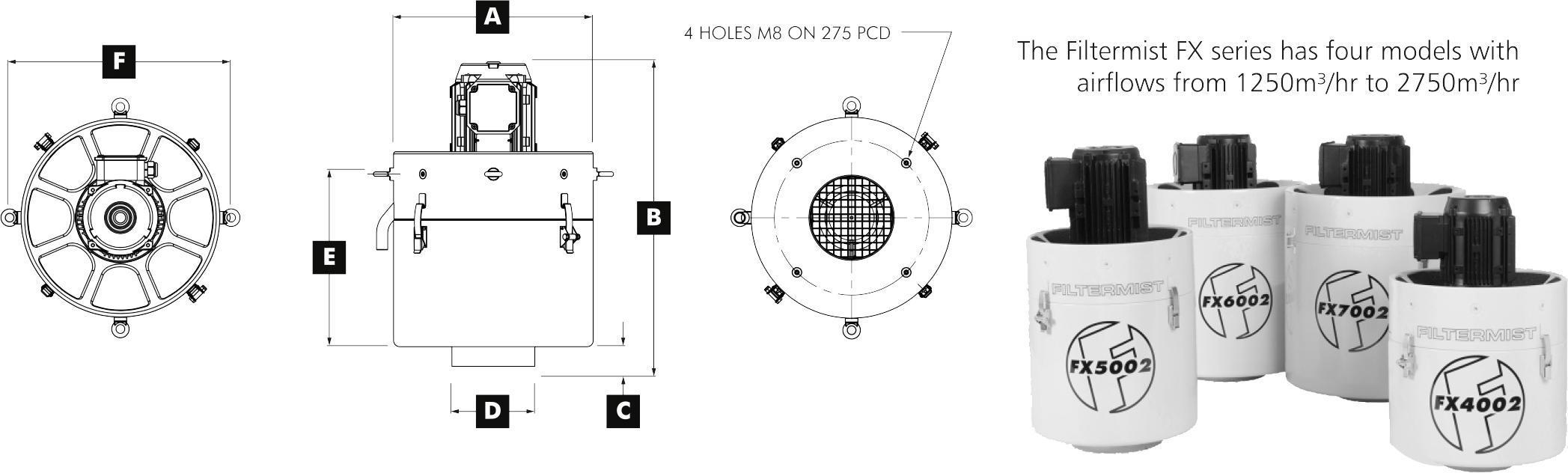

FX SERIES
| Model | Airflow M3/hr | Motor1 | A (MM) | B (MM) | C (MM) | D (MM) | E (MM) | F (MM) | Weight (KG) | Noise 2dBA | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FX4002 | 1250 @ 50Hz 1500 @ 60Hz |
1.1 kw 50Hz 200v, 220 380v, 400v, 415v |
1.1 kw 60Hz 200v, 220v, 230v, 440v 460v, 480v |
357 | 544 | 35 | 148 | 309 | 398 | 25.8 | 70 |
| FX5002 | 1675 @ 50Hz 2000 @ 60Hz |
1.5 kw 50Hz 200v, 220v 380v, 400v, 415v |
1.5kw 60Hz 200v, 220v, 230v, 440v 460v, 480v |
357 | 634.5 | 35 | 198 | 378 | 398 | 31.8 | 71 |
| FX6002 | 2000 @ 50Hz 2400 @ 60Hz |
0.55kw 50 Hz 200v, 220v, 380v, 400v, 415v |
2.2kw 60Hz 220v, 230v, 440v,460v 480v, |
438 | 638.5 | 35 | 198 | 432 | 485 | 36.8 | 73 |
| FX7002 | 2750 @ 50Hz | 0.55kw 50 Hz 200v, 220v, 380v, 400v, 415v |
Not Available | 438 | 638.5 | 35 | 198 | 432 | 485 | 36.8 | 73 |

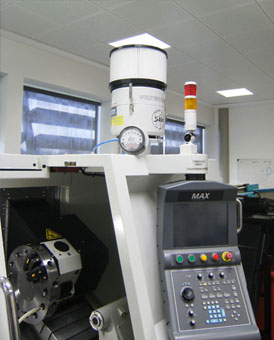

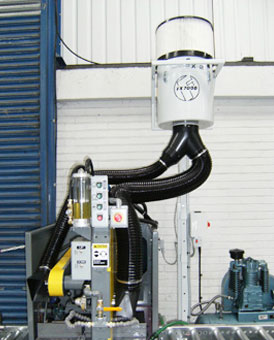

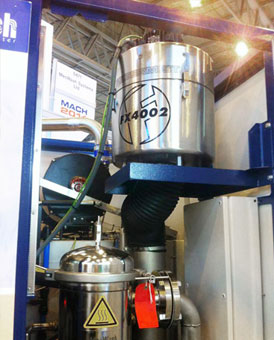

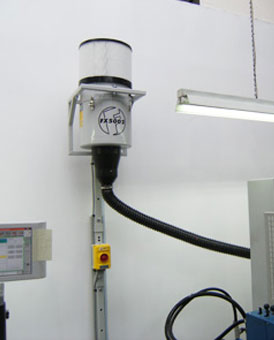

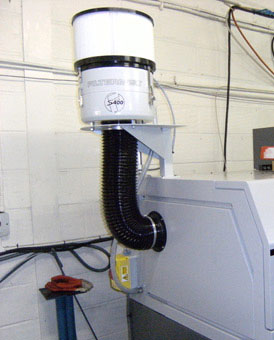

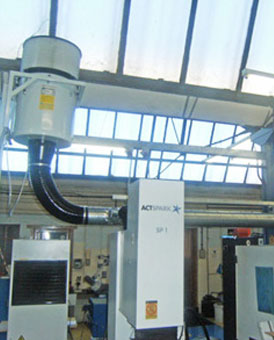

Application
